Stabilized camera rig

A height-adjustable camera payload for a quadruped robot · Georgia Tech capstone

Mechanical design
Robotics
Systems integration

Justin Park beside the completed team camera payload mounted on a Unitree Go2 Pro — Justin Park with the team’s completed camera rig.

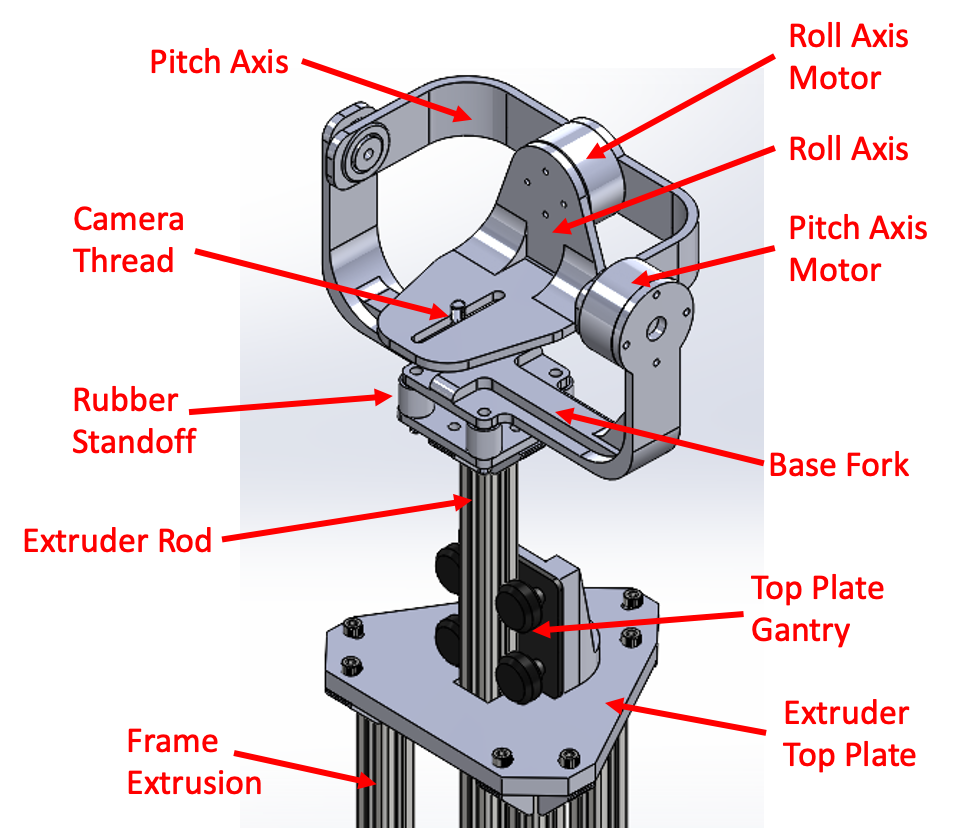

Labeled two-axis gimbal CAD showing camera balance, actuation, and isolation interfaces — Two-axis gimbal CAD with camera mounts and vibration isolation.

Overview

Our Georgia Tech capstone team built a height-adjustable, two-axis camera payload for a teleoperated Unitree Go2 Pro to collect indoor imagery for 3D reconstruction.

I contributed to requirements and concept selection, carried out structural analysis, and developed the gimbal CAD and drawings with attention to camera balance and mounting interfaces. Teammates led mast design and testing/integration. Together, we produced a usable 3D reconstruction.

Design and prototype

Completed mast and camera payload mounted on a Unitree quadruped robot in a hallway — Completed team prototype on the robot.

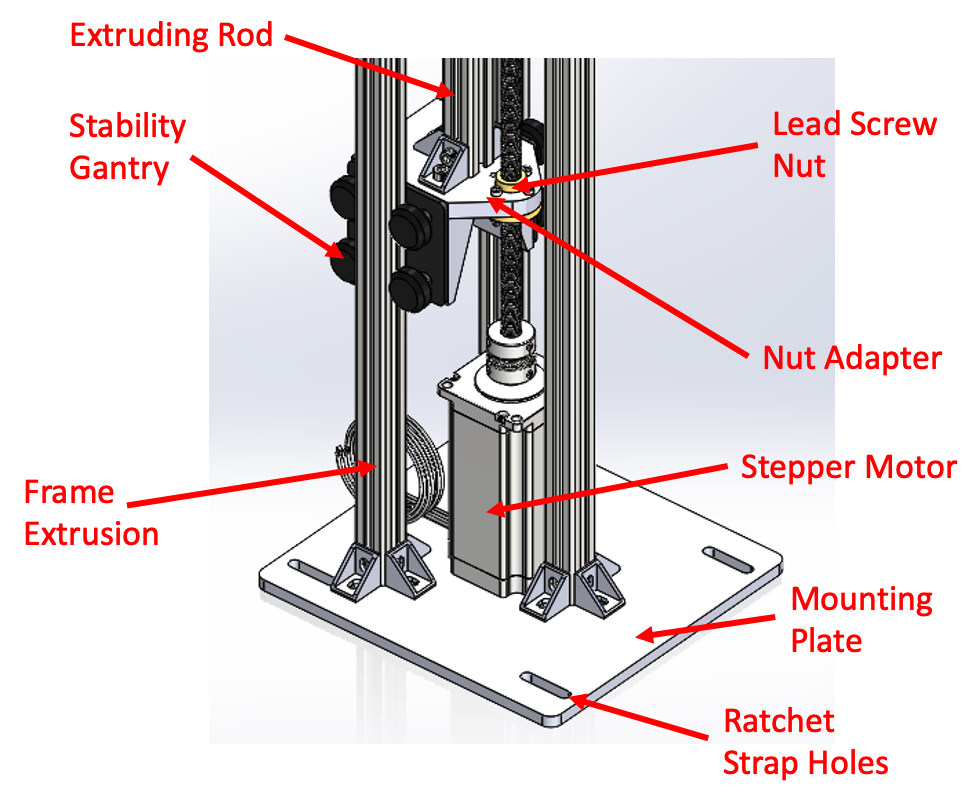

Labeled mast CAD showing lead screw, gantry, motor, and robot mounting interfaces — Team mast design: lead screw, gantry, and robot mounting.

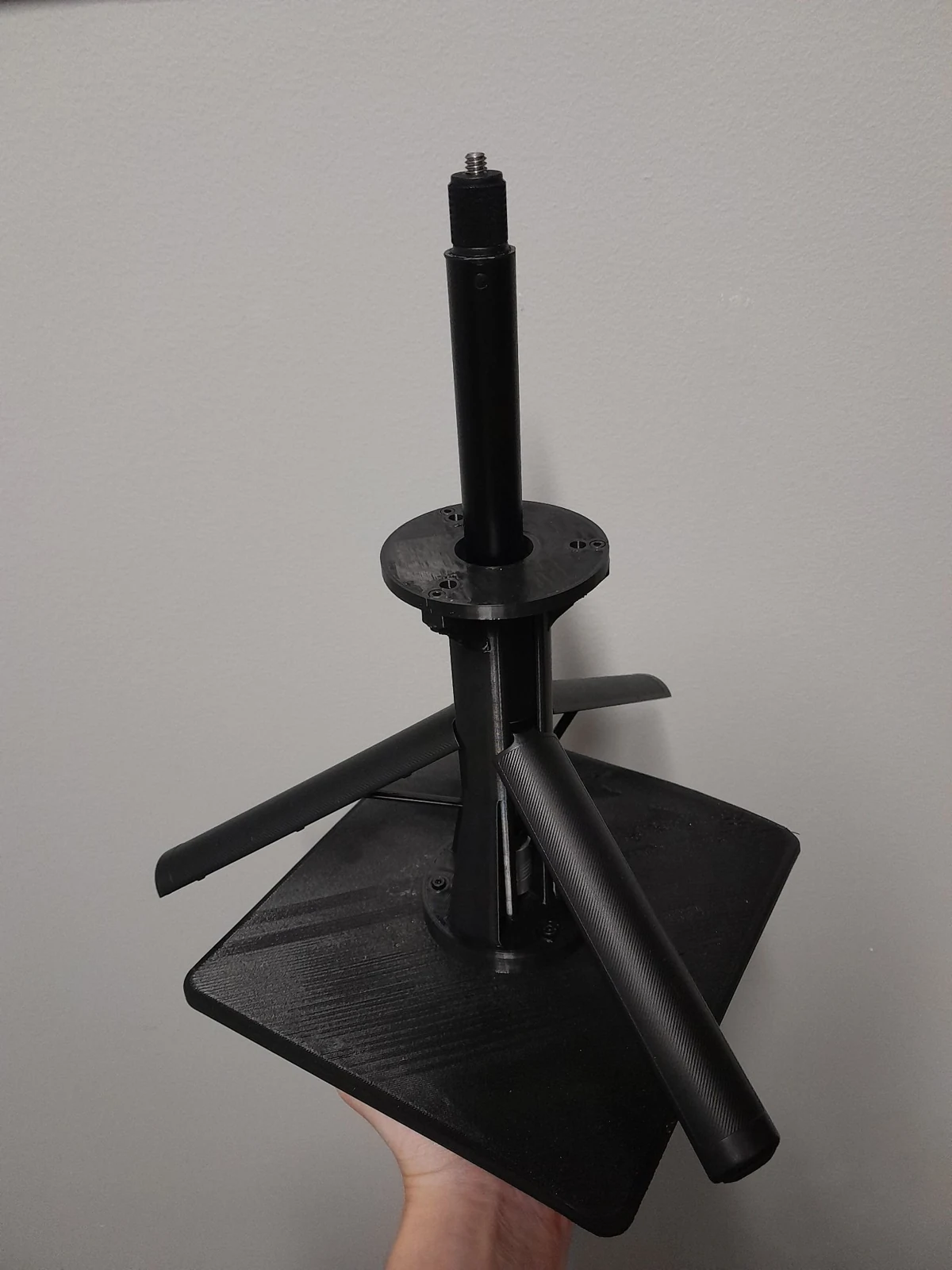

Early printed mounting interface held for inspection — Early printed mounting prototype.

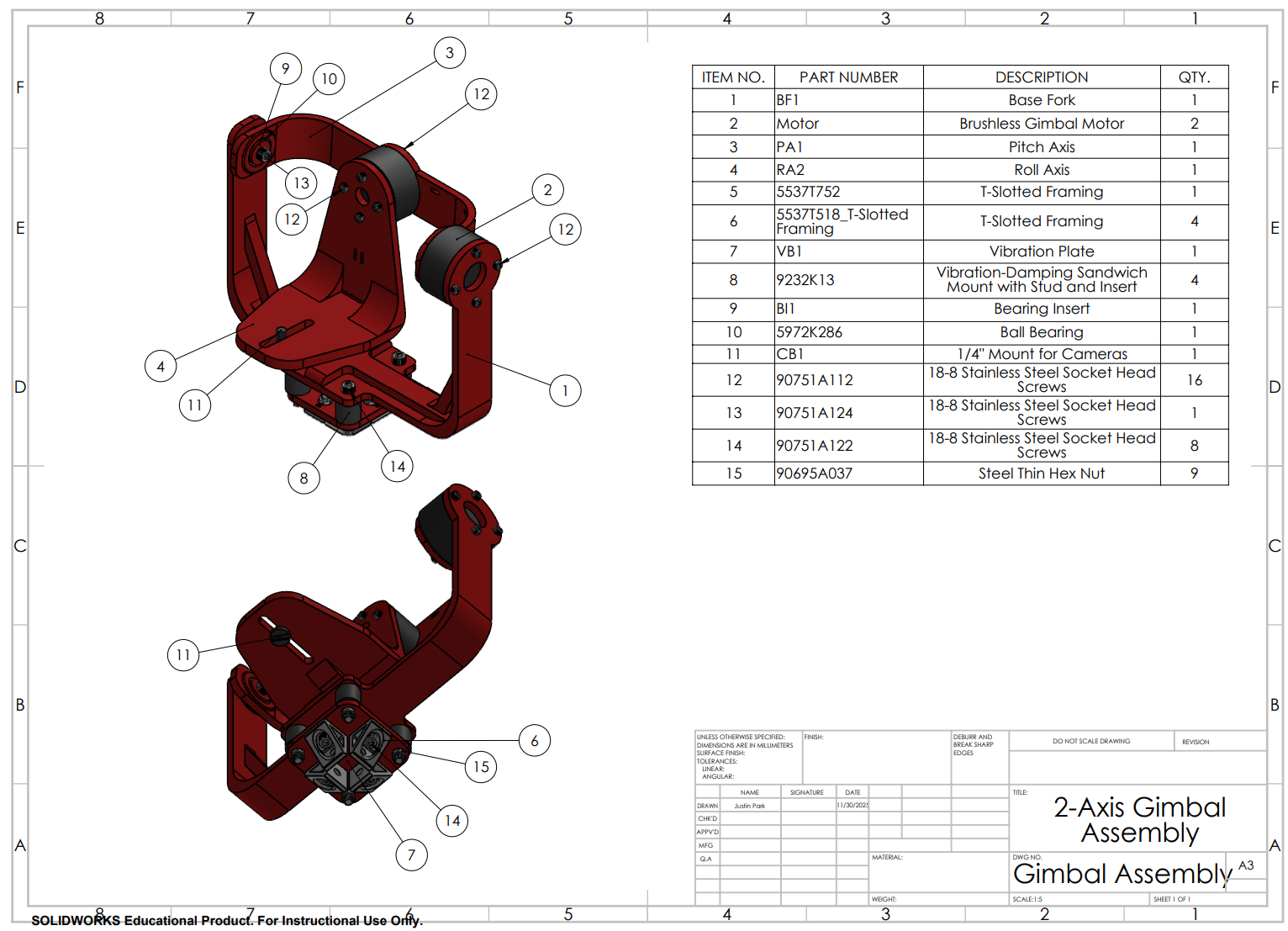

Exploded gimbal assembly drawing with component list — Gimbal assembly drawing.

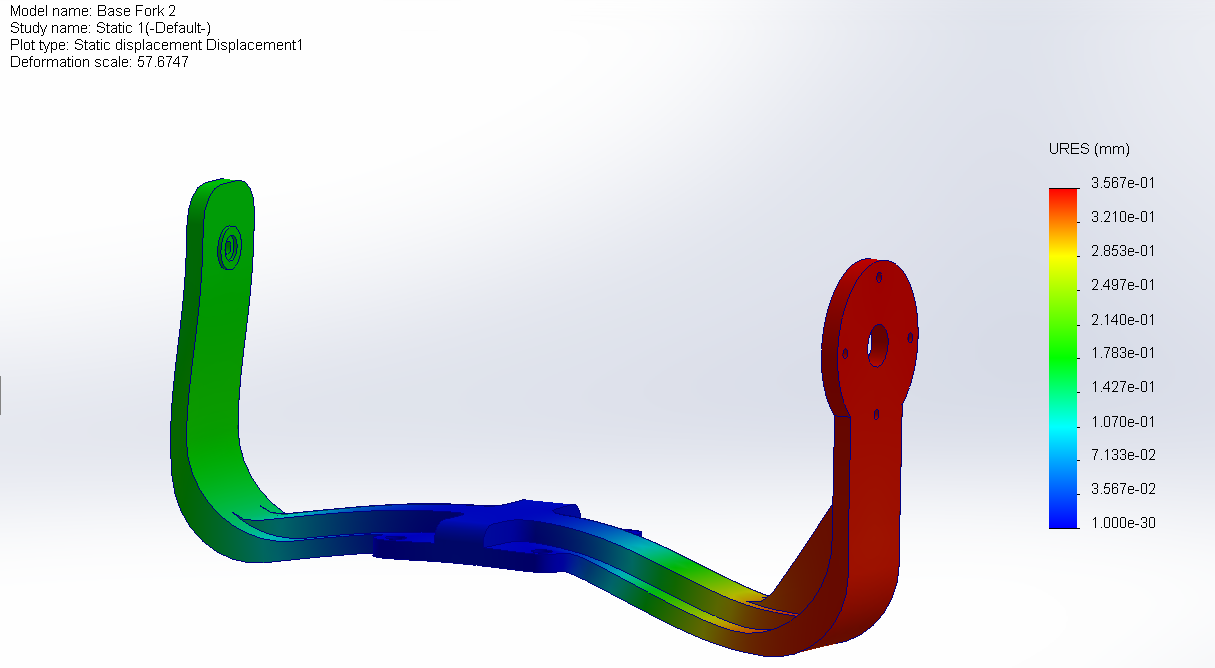

Base-fork displacement FEA showing a maximum resultant displacement of 0.3567 mm — Base-fork displacement FEA: 1 kg modeled payload, 0.3567 mm maximum resultant displacement.

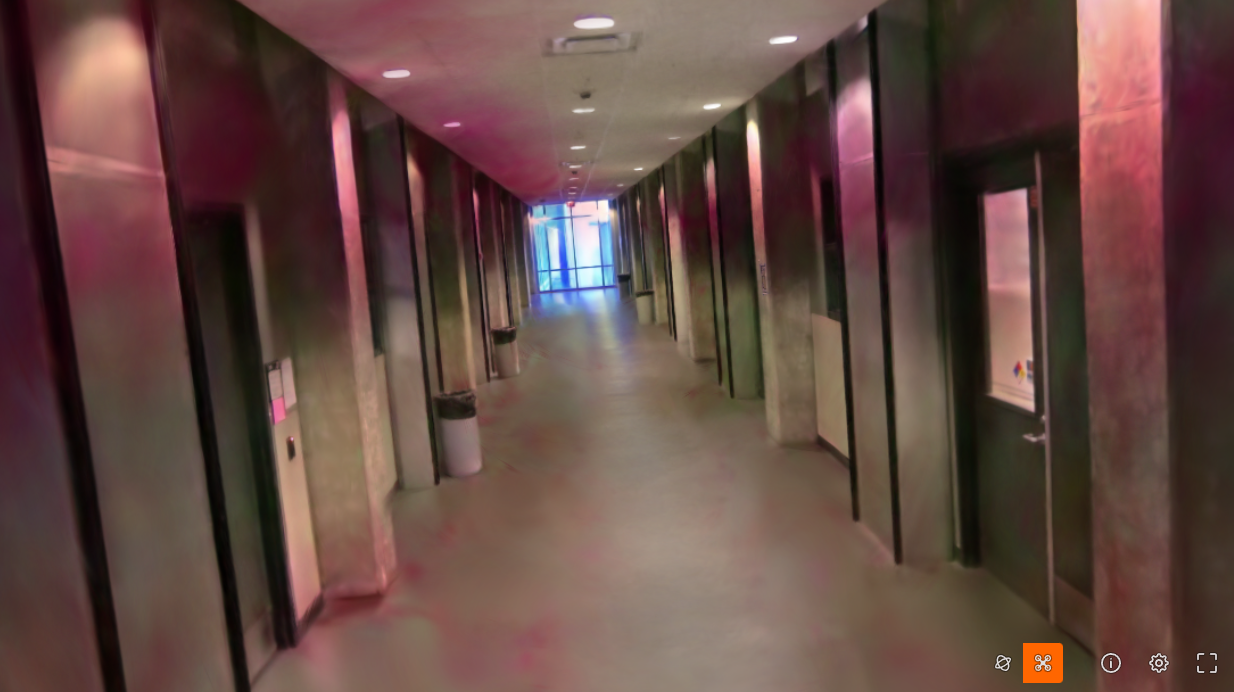

Indoor hallway reconstruction with visible camera occlusion artifacts — Team 3D reconstruction output, with visible artifacts.

Atlanta Dynamics capstone team beside the completed camera rig — Atlanta Dynamics team and prototype.

Team test notes

Mast extension took approximately 40–60 seconds, exceeding the under-30-second target.
Vibration and camera-occlusion artifacts remained. The final rig could not climb stairs.
Environmental and fatigue requirements were not tested.
